CU/MICA&LSZH/OS/FRPVC/SWA/VERMIN-PROOF FRPVC FIRE RESISTANT TELEPHONE CABLE
Application:
This cable is used for communication and telephone systems as main and distribution cabling. Armored type is
offered for direct burial & harsh environment installations due to it additional mechanical protection.

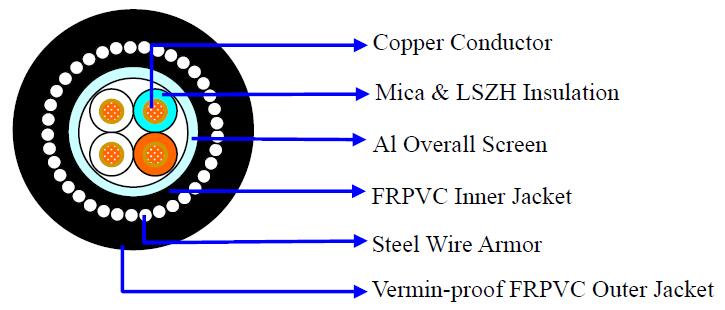

Construction:
Conductor:Plain Annealed Solid Copper to IEC 228 Class 1
Insulation: Mica and LSZH insulation
Shape:Circular
Overall Screen:Overall Polyester/ Aluminium foil screened plus copper drain wire
Bedding:FRPVC
Armour: Galvanized Steel Wire Armour
Outer Sheath:Vermin-proof FRPVC
Standard:IEC60332 & IEC60331
Marking:
The cable is marked with white or other colors as follows:
Caledonian Cables Co., Ltd
Type and size of cable
Manufacturing date
Meter Marking
The meter mark is printed every meter with an accuracy of 0.5%.
Other printing are available according to customer request.
Table 1. Technical Data
Number of Pairs |
Diameter of Conductor (mm) |
Nominal Dia under Armour (mm) |
Armour Wire Dia (mm) |
Thickness of Outer Jacket |
Diameter of Cable (mm) |
|---|---|---|---|---|---|
4 |
0.9 |
19.0 |
1.5 |
1.8 |
25.6 |
25 |
0.9 |
42.2 |
2.0 |
2.5 |
51.2 |
The data included in the present catalogue are merely indicative; Caledonian Cables Limited reserves to itself the right to change them as its own discretion in any time.
